DLPK2

CombiVolt™ 2 Safe Isolation Kit

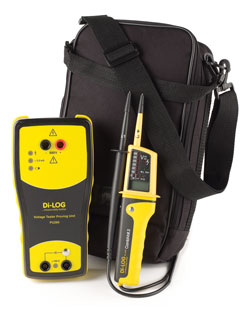

DLPK2 - CombiVolt™ 2 Safe Isolation Kit

Voltage & Continuity Testers with Phase Rotation Test. The three-in-one testers with a rugged, ergonomically formed housing for perfect handling.

CombiVolt™ 2 Kit Features:

  • LCD Resolution 1 V ±3% + 8 Digits
  • Carry Case
  • Continuity testing with optical and acoustic indication
  • Automatic switching between voltage and continuity
  • Phase rotation test system
  • Single pole phase indication
  • Fully compliant with GS38
  • Fully operational voltage indication even when batteries are discharged CombiVolt 2 with digital indication of voltage.



Trade Price

£162.90

Calibration

£45.00



CombiVolt™ 2 Voltage/Continuity Tester - Specification

Voltage display 12 – 690 V AC/DC
LED resolution 12, 24 , 50, 120, 230, 400, 690
LCD resolution 1 V ±3 % + 8 digits
Voltage detection Automatic
Acoustic signal AC voltage – DC voltage
Polarity detection Full range
Response time LED < 0.1s, LCD <2s
Frequency range 0 – 400 Hz
Peak current Is < 0.3 A / Is (after 5s) < 3.5 mA
Operation time 30s
Recovery time 10 min
Auto power on < 12 V AC/DC
Single pole voltage indication
Voltage range 100 – 690 V AC
Frequency range 50 – 400 Hz
Continuity
Measuring range 0 – 400 KΩ
Phase rotation test
Voltage range 100 – 690 V
Frequency 45 – 65 Hz
Over voltage protection 690 V AC/DC g
Power supply 2 x 1.5 V LR03 batteries
Dimensions 255 x 70 x 28 mm
Weight 200 g

PU260 - Specification

Voltage range 50 – 500 V AC/DC
Power supply 9 V 6LF22
Dimensions 150 x 80 x 50 mm
Weight 310 g
