Mini 80 Amp AC/DC Clamp Meter

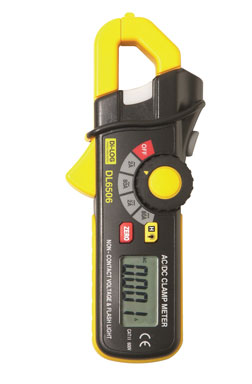

DL6506 Mini 80 Amp AC/DC Clamp Meter


A compact clamp meter for use where access to cables is a problem. This instrument fits neatly in the hand and with a clamp opening of 18 mm it is ideal for those instances where it is hard to reach cables.

A range of 1 mA to 80 A AC/DC means the small size does not compromise on range or accuracy.

The min resolution of 1 mA will enable detection of nuisance tripping of RCDs.

This clamp meter also features a non contact voltage indicator and a torch built in.


  • AC/DC current 1 mA to 80 mA
  • Non contact voltage indication
  • 18 mm Jaw opening
  • Data hold, max current capture
  • Auto power off
  • Backlit display


Trade Price







Measurement Range Basic Accuracy
AC Current 1mA - 80A ±3% ± 8 dgts
DC Current 1mA - 80A ±2.8% ± 8 dgts
Non Contact Voltage 100V 600V AC
Power Supply 2 x 1.5V AAA
Dimensions 160 x 60 x 28mm
Weight 174g
